Elsa Beam

Products/ Beam Seating/ Elsa Beam

Multi-purpose beam seating is perfect for contract, public and corporate environments. Whether for a waiting areas or receptions, with configurable chair and table options on a beam, you can fill any space perfectly with comfy, durable seats. Our ranges have options including upholstered seats and backs, wood veneer seats and backs, stylish table tops, optional arms, floor fixings and are
all available in a choice of finishes and colours.

Product range

EHR2

2 Seats High Back

Features

CONSIDERATIONS

Available in a variety of Fully Upholstered
Available in a variety of seat/table combinations
The welded steel frame construction allows the product to be used in most applications

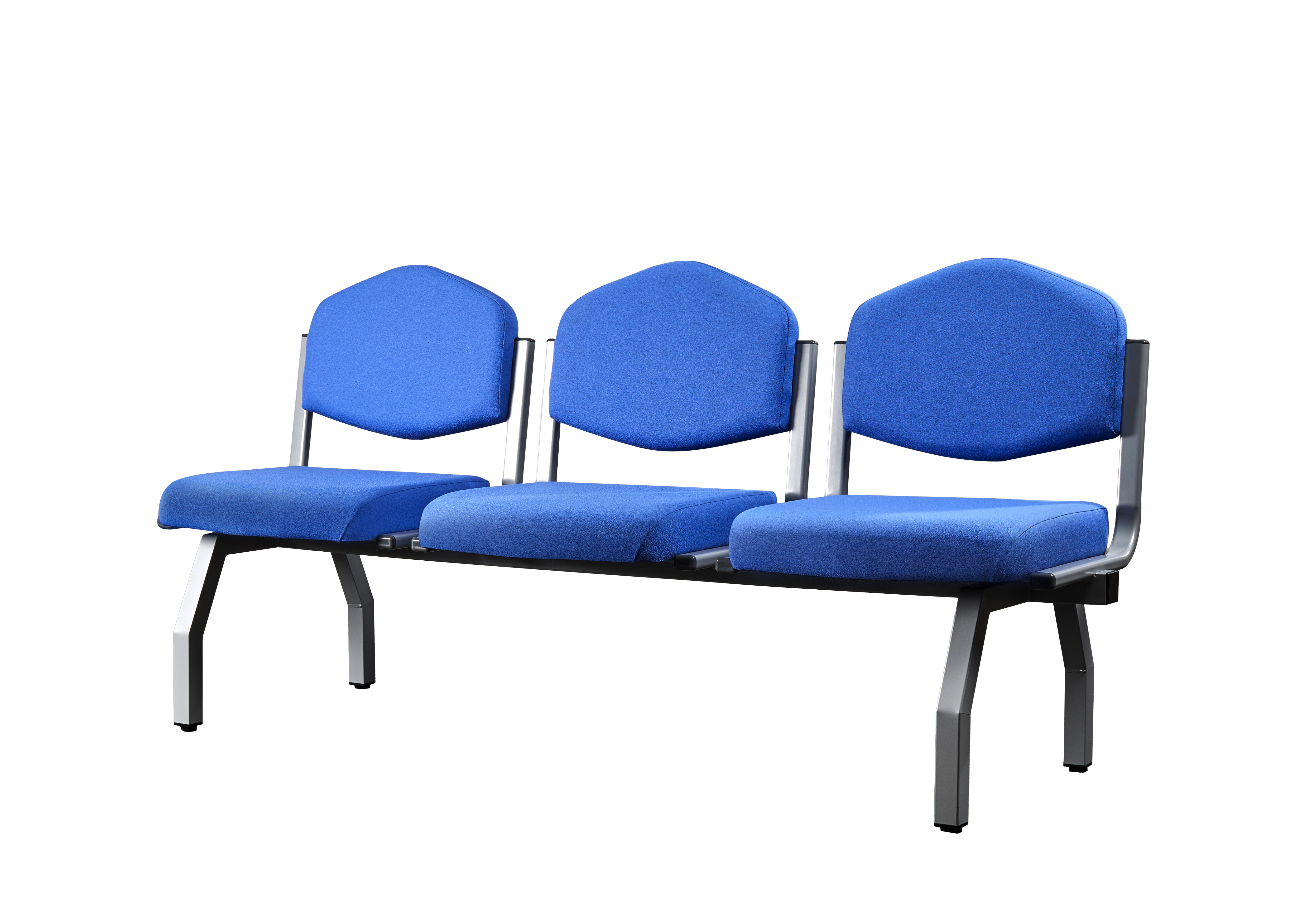

Triangular or Angled end frames
Triangular frames have pre-drilled holes for floor fixing
High Back, Full Back and 3/4 Back
Available with optional moulded arms

MATERIALS

Seat and back boards are produced from laminated plywood that is
CNC routed into shape and inserted with threaded metallic ‘T-Nuts’ that provide fixing points for the frames.

These boards are covered with CMHR (Combustion Modified High Resilience) Polyurethane foam for comfort and compliance with
flammability requirements for contract use.

Upholstery fabrics for seat and back panels are available in a wide selection of patterns, colours & weaves, suitable for contract use in public areas.

Frames are produced in a selection tubular steel sections with a minimum wall thickness of 1.5mm. Steel plates and brackets are a minimum of 3mm thick. All steel components are fully welded into assemblies for strength. All metalwork is available in a selection of epoxy powder coating finishes. Arms are finished with moulded Polyurethane pads for comfort.

Tables, when specified, are 25mm Thick Melamine faced chipboard.
Tops are edged all around with 2mm thick impact resistant ABS.

FRAME COLOURS
